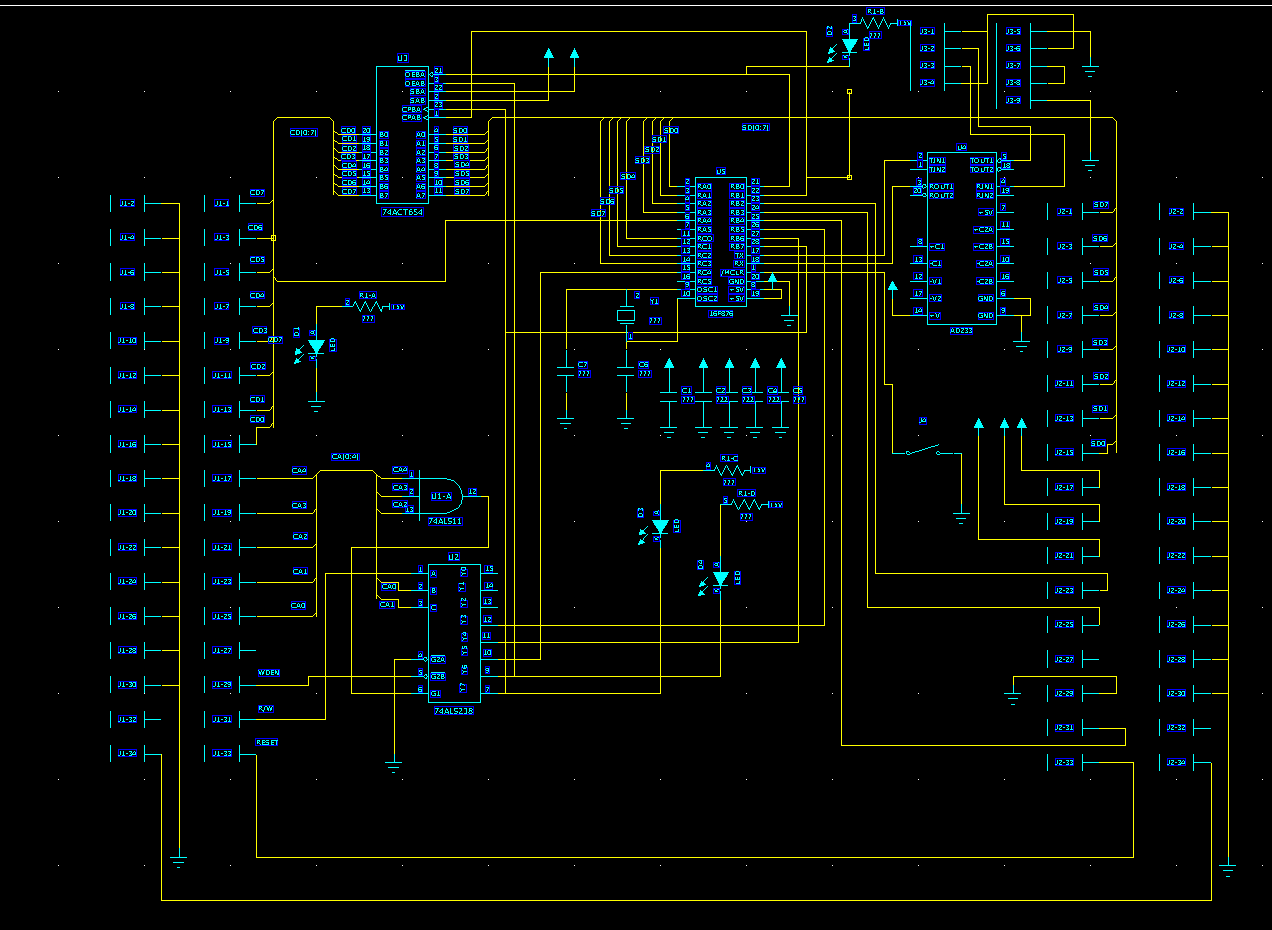

WPC Sound Interceptor Schematic

The idea behind this design is that it sits between the WPC processor and the sound card. It captures sound commands sent across the link, and can forward, modify or block them on the way to the sound card. This will enable me to, for example, add more music to Creature from the Black Lagoon. It will server double duty as a sound diagnostic card - depending on the software.
